I-294 Roadway and Bridge Rehabilitation, I-94/IL-394 to 167th Street — Phase II Engineering

Project Overview

Description

The project's focus on both mainline and bridge rehabilitation underscored HBM's commitment to enhancing the overall safety, functionality, and longevity of this crucial segment of the Tri-State Tollway. The comprehensive scope of work included the design and preparation of all construction plans for the mainline pavement and shoulders. This involved detailed earthwork cross-sections, horizontal and vertical alignment layout designs, ditch profiles, and utility plans. Bridge inspections were conducted, leading to the preparation of a comprehensive bridge condition report, along with rehabilitation design plans. HBM played a pivotal role in developing maintenance of traffic strategies, conducting traffic barrier warrant analyses, and formulating construction staging plans with meticulous coordination for Maintenance of Traffic. These efforts were integral to ensuring the smooth execution of construction activities while minimizing disruptions to traffic flow.

HBM's Scope

Scope of Work

• ›Design and preparation of all construction plans for mainline pavement and shoulders
• ›Detailed earthwork cross-sections, horizontal and vertical alignment layout designs
• ›Ditch profiles and utility plans
• ›Bridge inspections and comprehensive bridge condition report
• ›Bridge rehabilitation design plans
• ›Maintenance of traffic strategies and traffic barrier warrant analyses
• ›Construction staging plans with meticulous MOT coordination
• ›Located on the Tri-State Tollway between Mile Post 0 (I-94/IL-394) and Mile Post 5.3 (167th Street) in Cook County; rehabilitation of two mainline bridges and one crossroad bridge plus roadway design enhancements

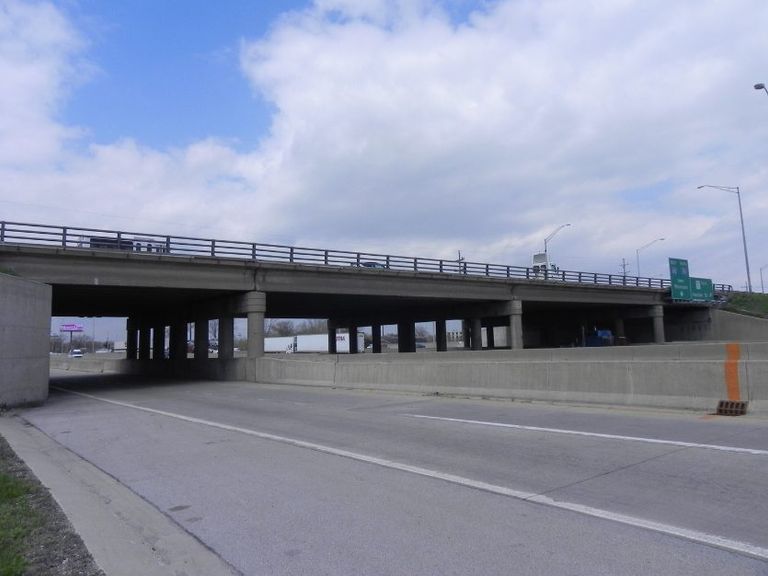

• ›Bridge #115: I-294 under Halsted Street (HBM) — four-span; precast prestressed concrete girders on RC piers and stub abutments; exterior spans 41'-0", interior spans 72'-4"; overall length 226'-8", width 94'
• ›Bridge #118: Northbound I-294 over Center Street (Hanson) — three-span precast prestressed concrete I-beams; overall length 156'-10", width 90'-1"; built 1957, widened/rehabilitated 1966, 1980, 2007
• ›Bridge #121: Southbound I-294 over Dixie Highway (HBM) — two-span precast prestressed concrete I-beams on RC pier and integral abutments; overall length 151'-0", width 102'-7" to 104'-5 7/8"; built 1957, widened 1966 and 1979, replaced 2005
